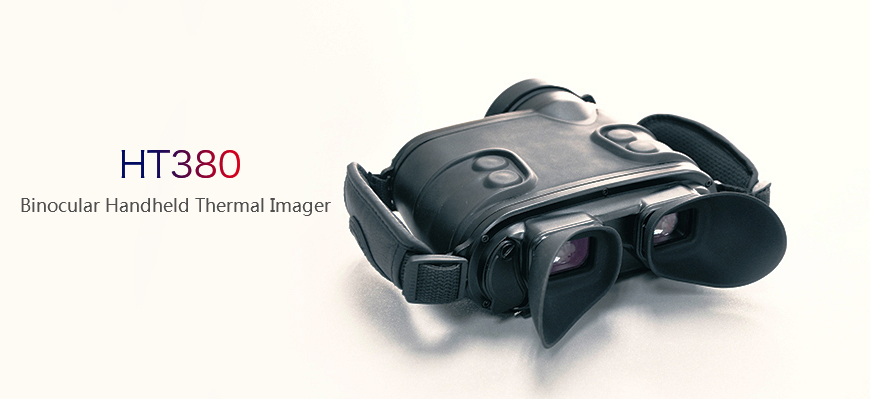

Binocular Handheld Thermal Imager
- Product Description
Binocular Handheld Thermal Imager is our new high-tech products, and independent R&D By Kunming Yunzhe High-tech Co., Ltd. it’s small, light weight and easy to use (All menu function can be operated with only four buttons). The Matte painting Surface will not light-emitting or reflect light. It’s your ideal choice for bad weather and night target detection, also a perfect tool for Covert observation and security surveillance.
|
Technical Parameters
|
|
|
Model: |
HT380（Binocular Handheld） |
|
Detector Type: |
Uncooled Bolometer |
|
Pixels: |
384×288 |
|
Spectral Range: |
8～14um |
|
Frame Frequency: |
50Hz |
|
Lens: |
75mm/Standard Lens/F=1.2 （Manual Focus） |
|
Eyepiece: |
640×480LCD Binocular |
|
Power Supply& Battery Operating Time: |
Model： 7.2V/1400mAH Continuous Operation：>4 Hours Operation Life：discharge and recharge the battery up to 500 times |
|
Encapsulation: |
IP65 |
|
Storage Temperature: |
-20℃～+60℃ |
|
Operating Temperature: |
-10℃～+50℃ |
|
Weight: |
<1.2kg（With batteries and standard lens） |
|
Size: |
170(L)×168(W)×76(H) |
