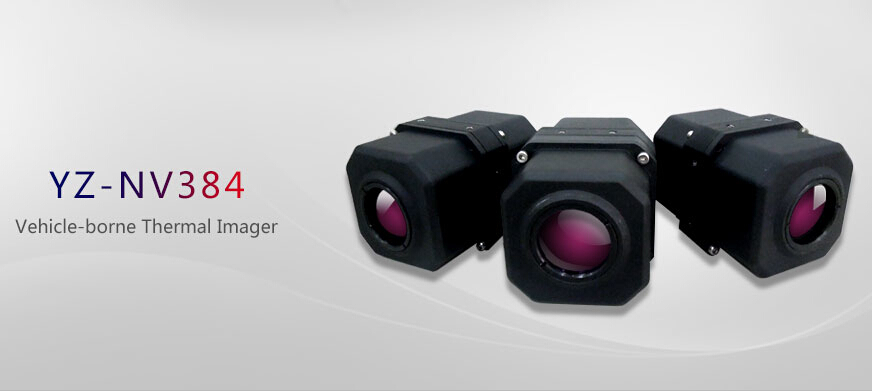

Vehicle-borne Thermal Imager
- Product Description
YZ-NV384 Vehicle-borne Thermal Imager is using the international advanced high sensitivity uncooled detector with the characteristics of stable imaging circuit , low noise, high frame rate, high resolution, high temperature measurement accuracy, low power consumption, stability and reliability, compact construction, easy-installation, external powder source, reserved RS232 communication interface and easy-system integration. It is suitable for night aided driving of all kinds of vehicles.
Technical Parameters
Detector type
FPA Uncooled detector
Detector specification
384×288-17μm
Spectral response
Long wave 8~14μm
Lens
19mm/F=1.0 Non-thermalization lens
Filed angle
28°×21°
NETD
0.06℃
Frame rate
50Hz(PAL)/60Hz(NTSC)
Image processing
Digital image enhancement technique (DDE)
Function
Image adjustment: full auto mode, black and white or
pseudo color display
Uptime
<15s
Protection grade
IP69K
Control interface
Reserved functional debug interface,232 communication
interface
Operating temperature
-40℃~+80℃
Supplying power
DC12V-36V、<2W
Weight
≤300g
